If you are searching about Guitar Wiring Diagrams 2 Humbuckers you've visit to the right web. We have 25 Pics about Guitar Wiring Diagrams 2 Humbuckers like wiring diagram 2 humbuckers 3 way switch - Wiring Diagram and Schematics, 2 Humbuckers/3-Way Toggle Switch/1 Volume/2 Tones and also 2 Humbuckers/3-Way Lever Switch/1 Volume/1 Tone/Series Parallel. Here you go:
Guitar Wiring Diagrams 2 Humbuckers
fixpartgutierrez.z13.web.core.windows.net
Wiring Diagram 2 Humbuckers 3 Way Switch - Wiring Diagram And Schematics
www.caretxdigital.com

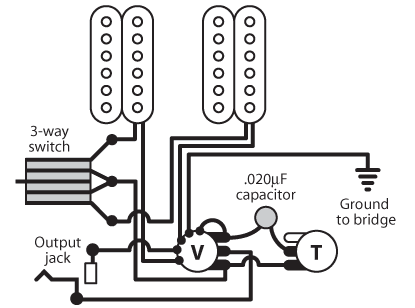

Guitar Wiring Diagrams | 2 Humbuckers/3-Way Switch/1 Volume
guitarelectronics.com
Guitar Wiring Diagrams | 2 Humbuckers/3-Way Switch/1 Volume/1 Tone
guitarelectronics.com
wiring tone volume humbucker humbuckers coil pickup guitarelectronics
How To Wire A 2 Humbucker, 2 Vol, 2 Tone, 3-Way Switch Guitar | Guitar
guitarkitworld.com
2 Humbuckers/3-Way Toggle Switch/1 Volume/2 Tones
guitarelectronics.com
humbucker humbuckers hh toggle tones bigcommerce dual guitarelectronics
Wiring Diagram 2 Humbuckers 3 Way Switch - Wiring Diagram And Schematics
www.caretxdigital.com
Three Must-Try Guitar Wiring Mods - Premier Guitar
www.premierguitar.com

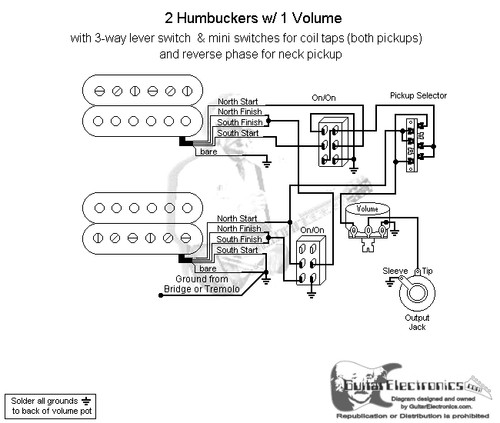

2 Humbuckers/3-Way Toggle Switch/1 Volume
guitarelectronics.com
Wiring 2 Humbuckers With 3 Way Switch - 2 Humbuckers 3 Way Toggle
minimosd-wiring-diagram83.blogspot.com
humbuckers wiring tone coils pickups
Free Guitar Wiring Diagrams
circuitdatacathetuses.z14.web.core.windows.net

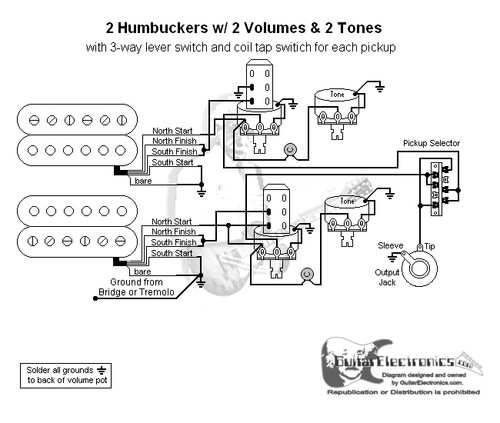

Guitar Wiring Diagrams | 2 Humbuckers/3-Way Switch/1 Volume/2 Tones
guitarelectronics.com
lever coil parallel tone humbuckers tones wiring guitarelectronics
Guitar Wiring Diagrams | 2 Humbuckers/3-Way Switch/2 Volumes/2 Tones
guitarelectronics.com
Guitar Wiring Diagrams | 2 Humbuckers/3-Way Switch/2 Volumes/2 Tones
guitarelectronics.com
Wiring Diagrams For Guitar Humbuckers
schematicwiringthorsten.s3-website-us-east-1.amazonaws.com
Guitar Wiring Diagrams 2 Humbuckers
usermanualquiddled.z21.web.core.windows.net
Wiring Diagram 2 Humbuckers 1 Volume Tone 3 Way Switch - Circuit Diagram
www.circuitdiagram.co

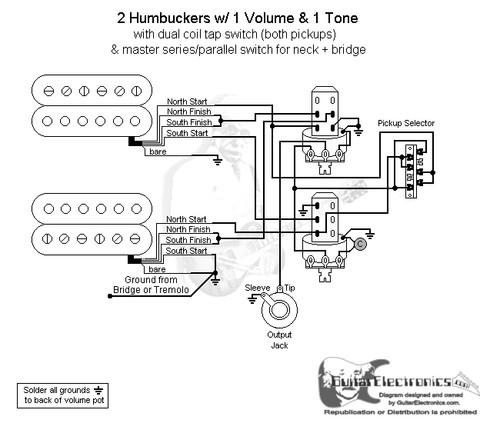

2 Humbuckers/3-Way Lever Switch/1 Volume/1 Tone/Series Parallel
guitarelectronics.com
switch way volume tone humbuckers lever series parallel
Wiring Diagram 2 Humbuckers 3 Way Switch - Wiring Diagram And Schematics
www.caretxdigital.com
2 Humbuckers/3-Way Lever Switch/1 Volume/2 Tones/Series Parallel
guitarelectronics.com
2 Humbuckers/3-Way Toggle Switch/2 Volumes/2 Tones
guitarelectronics.com
switch way humbuckers toggle volumes tones wiring guitar gibson diagram guitarelectronics style
Wiring Diagram 2 Humbuckers 1 Volume 1 Tone 3 Way Switch
diagramweb.net
wiring humbucker tone humbuckers pickup duncan pickups diagrams seymour conductor micros invader telecaster tele seymourduncan branchements boutons install attempting strat
Wiring Diagram 2 Humbuckers Volume Tone 3 Way Switch - Wiring Diagram
wiringdiagram.2bitboer.com
wiring humbuckers switch push telecaster diagrams
2 Humbucker 1 Volume Tone Wiring Diagram - Wiring Diagram
Guitar Wiring Diagrams 2 Humbuckers
guidefixhelenekieferp8.z14.web.core.windows.net
Free guitar wiring diagrams. Lever coil parallel tone humbuckers tones wiring guitarelectronics. Wiring diagram 2 humbuckers 3 way switch
